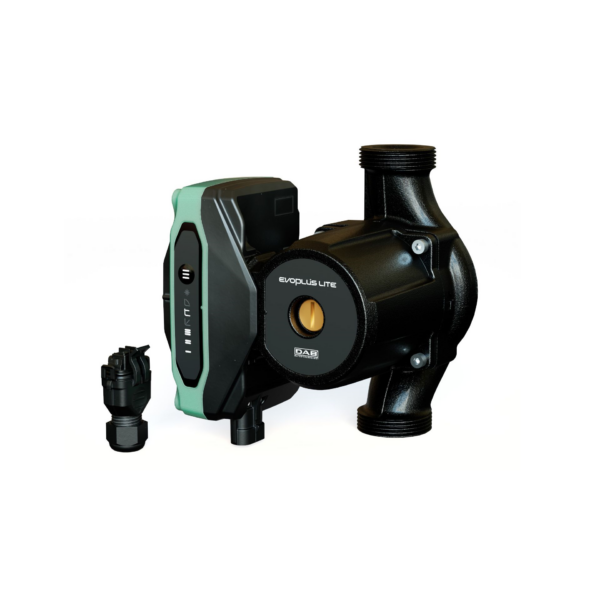

DAB Evoplus Lite Energy Efficient Circulator Pumps

Energy efficient circulator pumps, ideally suited to heating and air-conditioning applications, designed to suit any systems demanding efficiency and reliable performance, as well as versatility: once installed, it requires no further attention, outside of routine maintenance.

Evoplus Lite Brochure

POA

Description

TECHNICAL DATA
Operating range: from 2 to 12,5 m³/h with up to 12 meters head;
Liquid temperature range: -20 °C to +110 °C
Fluid pumped: clean water
Maximum working pressure: 16 bar (1600 kPa)
Maximum ambient temperature: + 40°C.
Accessories: ½“F, ¾“F, 1“F, 1“¼F, 1“¼M union fittings DN 32 PN 10 and DN 40 PN 10 threaded mating flanges.
Circulator protection rating: IPX4
Insulation class: F
Sound pressure level: ≤ 33 dB(A)

    Product Enquiry Form

    Additional information

    Weight10 kg
